Honda ATC 70 Restoration: We Rebuilt It in the Living Room

There's a certain kind of person who, when they don't have a garage, doesn't stop. They just use what they have. If what they have is a living room with hardwood floors, good lighting, and bay windows — fine. The ATCs go in the living room.

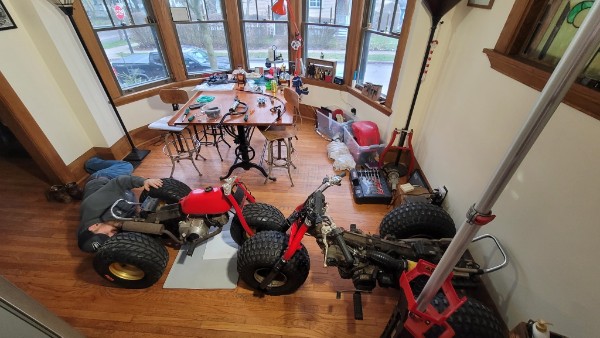

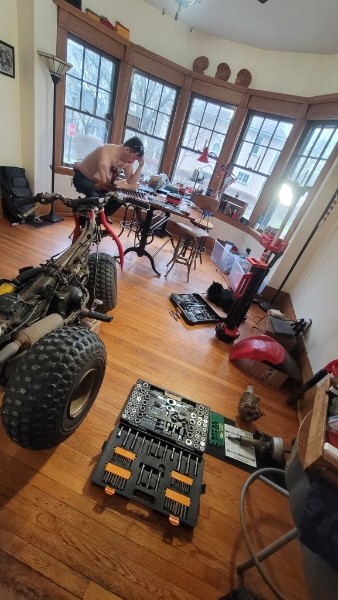

This is a Honda ATC 70 restoration. All of it happened inside. Two ATCs on the floor, a full socket set spread out, a work lamp in the corner. Whatever needed to be moved got moved. The build doesn't wait for a better space.

The ATC 70 is a 1973–1985 Honda that doesn't get enough credit. It's the machine Honda built to teach people how to ride three-wheelers — 72cc, centrifugal clutch, footpegs instead of floorboards, and a powerband that tops out somewhere around "neighborhood speed." In 2026, a clean one is actually hard to find. Most are either beat to pieces or they've been hiding in barns for 30 years and need everything. This one needed everything. That's what made it a living room project.

ATC 70 teardown is deceptively simple. The frames are small and there aren't many fasteners hiding anything. But "simple to take apart" doesn't mean "fast" — on a machine this old, every bolt has been there for 40 years and most of them will remind you of that fact.

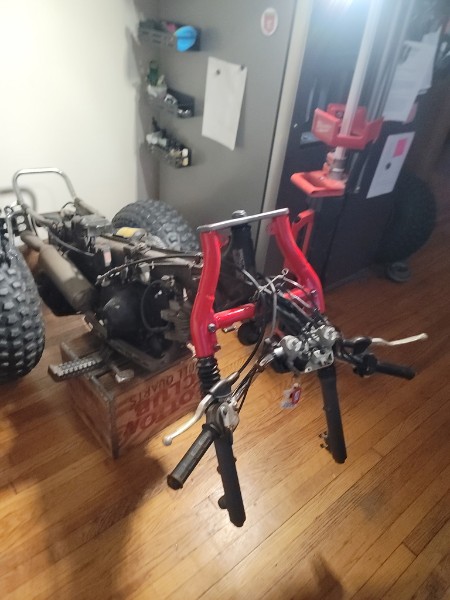

The engine pulls cleanly once the carb is off, the exhaust unbolted, and the kickstart mechanism cleared. What you're left with is that red frame — and on a 70, the frame is the whole personality of the machine. Square tubes, simple geometry, totally exposed. Once the engine's out and sitting on a crate next to the couch, you can actually see what needs attention and what's solid. Most of the 70's frame issues are cosmetic rather than structural. Most.

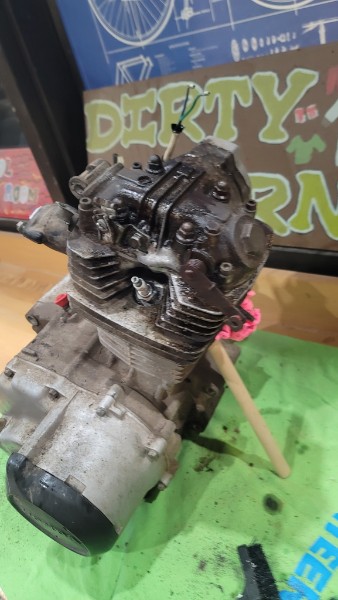

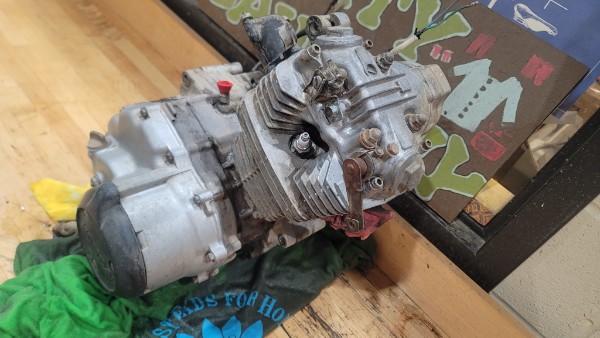

The ATC 70 runs a 72cc OHC single — overhead cam, which sounds fancy until you realize Honda put OHC on everything from 1969 forward because they knew it worked. The engine is small enough to hold with one hand and honest enough to tell you exactly what's wrong with it once it's on the bench.

Common issues on a 70 that's been sitting: dried-out gaskets, a stuck float in the carb, varnished pilot jet, and a valve clearance that's drifted. The top end is accessible and straightforward. If the bore hasn't been cooked — which on a 70 with its mild power output is unlikely — a fresh gasket set, a clean carb, and properly gapped valves gets most of them running fine.

What you're really checking for at this stage is evidence of a hard life. Aluminum corrosion around the head bolts, cracks in the case near the clutch cover, signs of overheating on the exhaust port. A healthy 70 engine has none of those things. This one was healthy.

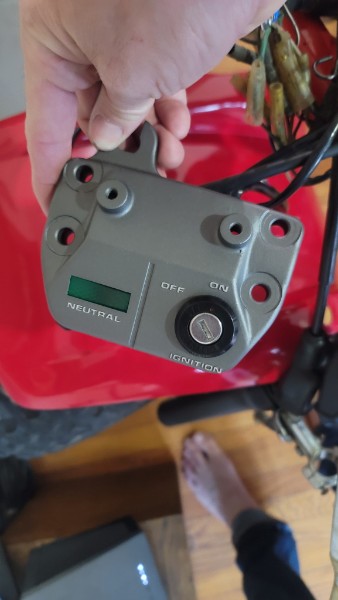

There's a part of every build where you stop doing mechanical work and start doing cosmetic work, and the quality of that transition determines how the finished machine actually feels. On the ATC 70, the ignition panel is one of those parts. It's small, it's functional, and it's the first thing anyone touches when they sit on the machine. If it looks rough, the whole machine feels rough — regardless of how good the engine runs.

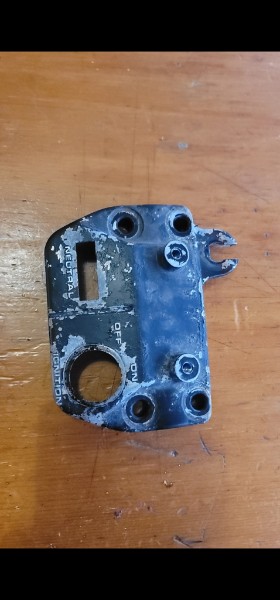

The stock panel on most surviving 70s has forty years of Florida sun or barn humidity working on it. The wrinkle-coat finish that Honda used was durable but not immortal. What it does after a few decades of neglect is exactly what it sounds like.

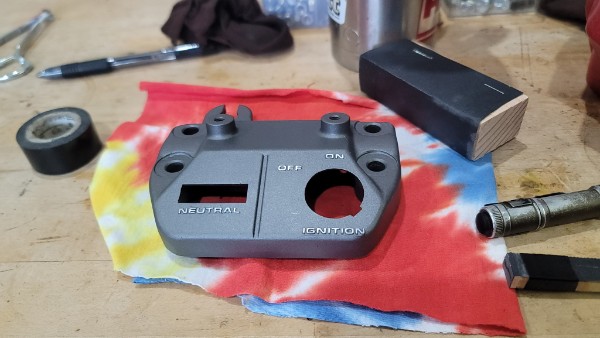

That's the same panel. The before is a wrinkle-coat finish that's lost the fight — flaking, bare metal showing through, the kind of surface that snags your knuckles and catches rust. The after is matte gray, clean, and sharp. Every marking still legible.

The process isn't complicated: strip the old finish, prep the metal, prime, shoot with a satin or matte finish that matches the original intent. What makes it time-consuming is the prep. Anything left in the metal surface shows through the new finish. You have to go all the way down and come all the way back up. There's no shortcut on a part this visible.

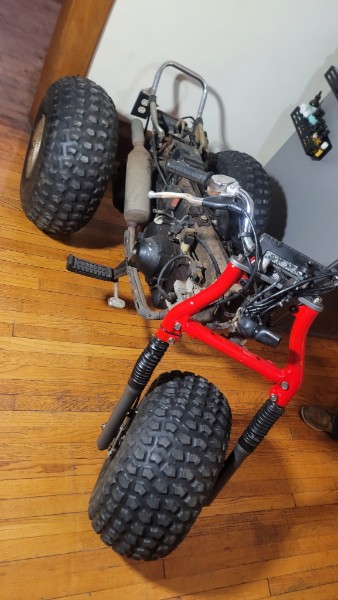

Reassembly on a 70 goes faster than teardown if you documented correctly. The engine drops back in on its mounting points, the carb goes back on with a fresh intake gasket, and the exhaust seats up cleanly. Everything that was cleaned and inspected goes back in the order it came out.

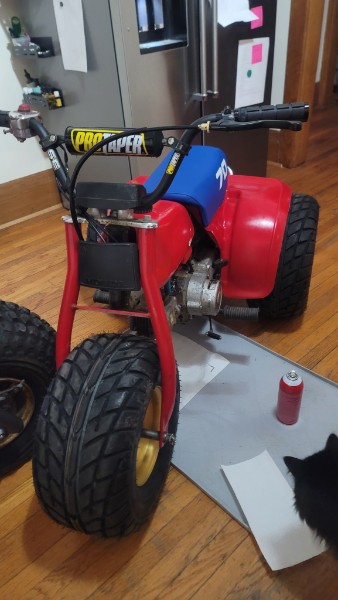

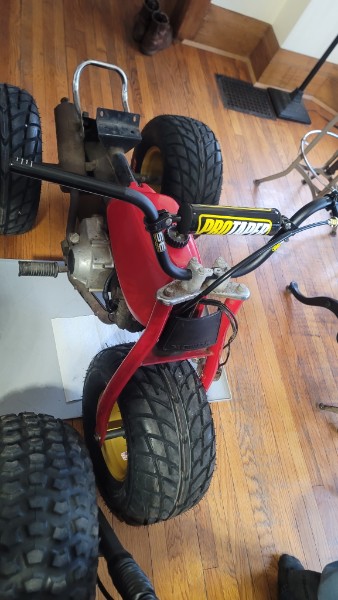

The ProTaper bars are an upgrade worth noting. Stock ATC 70 bars are short, narrow, and made from steel that flexes in a way that feels uncontrolled at anything faster than parking lot speed. ProTaper MX bars — aluminum, slightly wider, with a rise that puts your hands in a more natural position — transform the feel of the machine. It sounds like a small thing. It isn't a small thing. On a machine with no power steering and no suspension to speak of, handlebar geometry is the whole feedback loop.

The gold wheels are original. They look correct because they are correct — Honda put gold wheels on the ATC 70 from the factory, and on a clean restored example they're a detail that says "someone paid attention." You can repaint them, you can swap them, but if you want the machine to look right, you leave the gold.

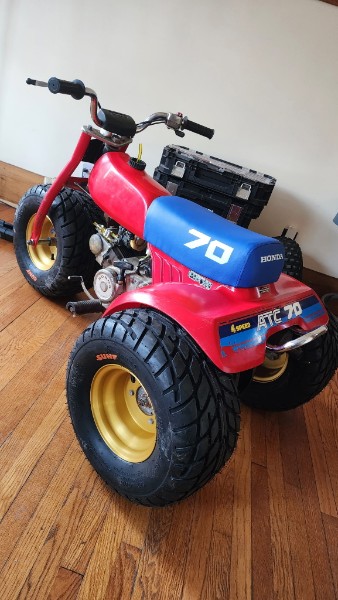

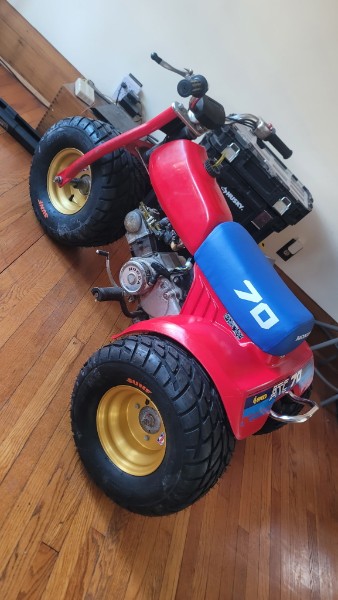

Red bodywork, blue seat, gold wheels, ProTaper bars, Honda ATC 70 decals. That's the right combination and it looks exactly right. These machines were designed to look a specific way, and when they're done properly — cleaned up, not over-restored, still clearly a working machine — they look better than almost anything you can buy new today.

The ATC 70 was never fast. It was never meant to be fast. What it was meant to be was durable, approachable, and fun at low speeds — and a well-restored one is still all three of those things. There's no irony in enjoying a 72cc three-wheeler in 2026. The machine earned it.

This whole Honda ATC 70 restoration happened indoors. Frame stripped, engine pulled, ignition panel refinished, ProTaper bars fitted, everything reassembled on hardwood floors while a cat watched from the corner. No garage. No lift. No problem.

If you're sitting on a 70 that needs work and you don't have a shop, this is your reminder that the shop is a state of mind. Lay down some cardboard, get the right tools, and do the work where you are. The machine doesn't know the difference. Neither does the cat.
