Swapping a 185S Front End Onto a Honda ATC 125: Every Problem We Hit
Swapping Honda 185S front suspension onto an ATC 125 gives you a real front end with actual travel — but the taller forks make the brake cables too short, it's easy to cut handlebars before test-fitting levers, and the headlight wiring diagram will trip you up if you mix up high and low beam. Here's every issue Scott ran into and how to avoid them.
Some links below are Amazon affiliate links. As an Amazon Associate we earn from qualifying purchases — disclosure.
The stock Honda ATC 125 front end swap to 185S suspension is one of the most common upgrades in the three-wheeler world. The 125's original front end is basic — short travel, minimal damping, and brakes that are more of a suggestion than a system. The 185S front end bolts in with minor modification and gives you longer travel forks, better damping, and a drum brake that actually works.
Scott's been building up his ATC 125 piece by piece, and the front end was the next logical step. What should have been a weekend swap turned into a multi-week project thanks to a chain of small problems that compounded on each other.
This is the one everyone warns you about and nobody measures for ahead of time. The 185S front forks are significantly taller than the 125's stock setup. That extra height means the brake cable now has to travel further from the handlebar lever down to the drum brake on the front wheel. The stock 125 cable comes up short — literally.
Steve's suggestion to try the 185S brake cable is the right call. The 185S cable is already spec'd for the longer fork length, so it routes cleanly without binding. If you can't find an OEM 185S cable, aftermarket universal cables work too — just make sure you're getting one long enough. Measure the old routing path with string before you order.
This one hurts. Scott trimmed his new handlebars to width before mounting the brake and clutch levers, and cut them too narrow. On a three-wheeler with no power steering, narrower bars mean less leverage — plus now the levers don't have room to sit where they need to.
The fix depends on how much was cut. If it's only 10-15mm per side, you can sometimes get away with it by adjusting lever position and grip length. More than that and you're looking at new bars or welding extensions — neither of which is ideal on a $90 set.
The 185S front end comes with a headlight mount, which the stock 125 doesn't have. Wiring it in means tapping into the 125's harness, and Honda's color coding on 40-year-old wiring isn't always intuitive.

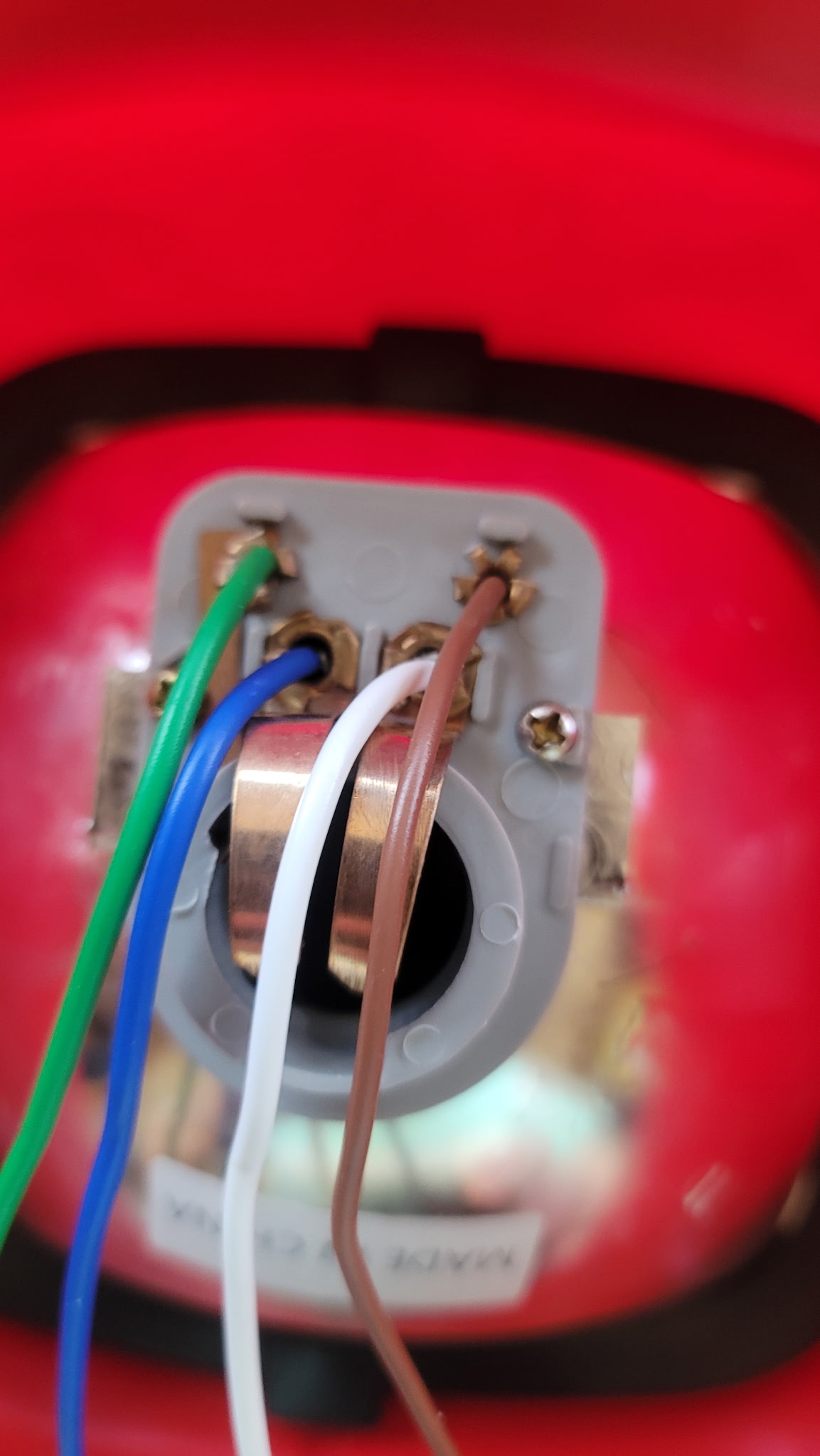

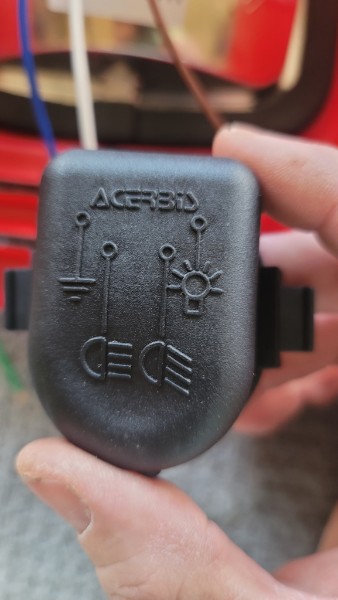

Here's the correct pinout for the headlight connector, left to right:
- Green — Ground
- White — Low beam (the filament pointing down)
- Blue — High beam
- Brown — Amber/running light
The easy way to remember: white = low, blue = high. Scott had them swapped, which would give you high beams as default and low beams when you flash — annoying at best, blinding other riders at worst.

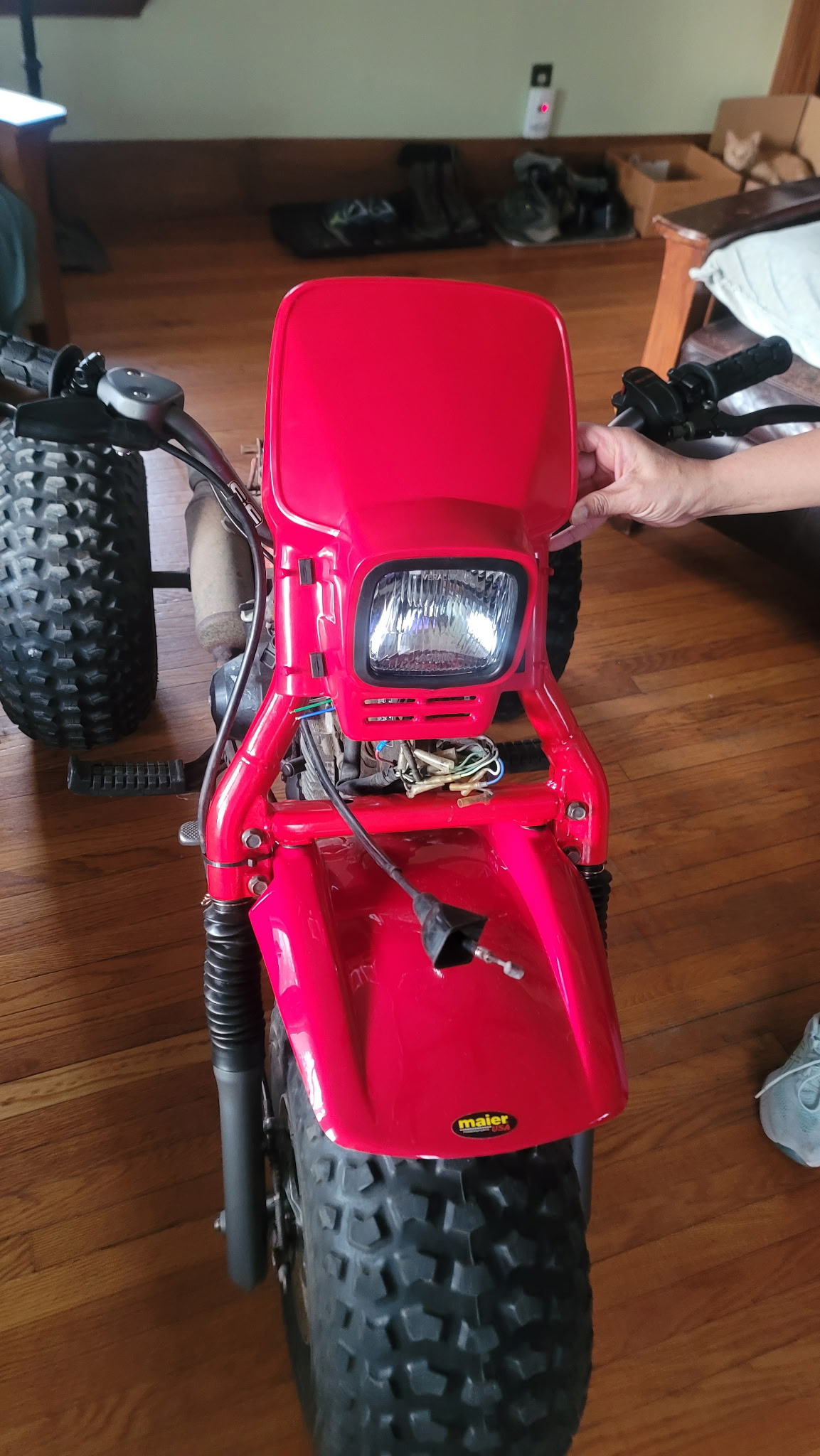

Even with the setbacks, Scott's ATC 125 is coming together. The 185S front end gives the machine a completely different stance and actual usable front brakes. The headlight adds visibility for trail riding — important on a machine with no rollover protection and one wheel up front.
This is the nature of building vintage three-wheelers. Nothing is a direct bolt-on, even when people say it is. Every swap has two or three hidden problems that only show up once you're mid-install with parts scattered across the garage floor. The key is knowing they're coming and not cutting anything until everything's test-fitted.
The Honda ATC 125 front end swap to 185S suspension is worth doing — better forks, real brakes, and a headlight mount make the 125 significantly more capable. Just plan for longer brake cables, don't cut your handlebars early, and double-check the headlight wiring diagram before you connect anything. Every problem Scott hit is avoidable if you know it's coming.
