Steve's BMW Z4 1000whp Build: Precision 6070 Next Gen, Oil in the Intercooler, Walbro Surge Tank, and a Ford 8.8

The BMW Z4 sDrive35i turbo build begins, as these things often do, with a transaction between friends. Scott had an E89 Z4 — the two-seat roadster with the N54 inline-six under the hood. The N54 is a twin-turbocharged 3.0-liter that BMW built from 2006 through 2013. It came from the factory with a twin-scroll turbo setup and made around 300 horsepower in street trim. It's also one of the most tuner-friendly engines BMW ever produced, which is either a feature or a warning depending on your self-control.

Scott sold Steve the car. At the time, this probably seemed like a straightforward used-car deal. What it actually was, as events would prove, was the opening move of a build that now has a four-digit wheel horsepower target and a parts list that includes a surge tank, three fuel pumps, and a rear axle from a Ford Mustang. These things compound quickly once you own the car. Blame gets assigned later in the article. It's not subtle.

Before Steve could build the Z4 into something, he had to tear out what was already there. The factory N54 twin-turbo setup came out, and when it did, a couple of things became immediately apparent.

First: oil in the intercooler. When you find oil in your intercooler, the turbo seal is on the way out. The turbo has been pushing oil past its seal and into the intake tract, where it's been coating the intercooler core and eventually making its way into the combustion chamber. The car was still running, which speaks to how tolerant the N54 is, but this was not a system that had much time left at full boost.

Second: the wastegate bushings were shot. A shot wastegate bushing means the wastegate actuator is rattling around in its bore, which means boost control is going sideways. Steve was genuinely surprised the car hadn't been audibly rattling. The N54's engine bay is not quiet at full throttle, so the noise may have been hiding in the general soundtrack, but mechanically, the wastegate bushings being gone is something you'd expect to hear if you were listening for it.

The takeaway: the car arrived with two significant turbo-related failures already in progress. The baseline was already compromised, which means whatever gains the build delivers are being measured against a setup that was quietly degrading. The turbo swap going in wasn't just an upgrade — it was also a rescue.

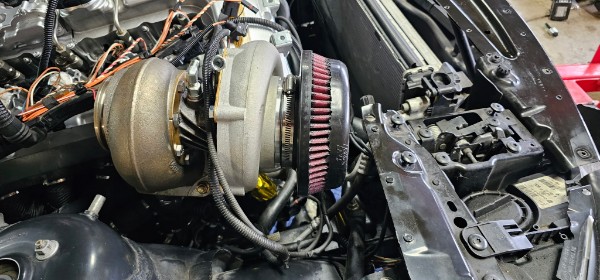

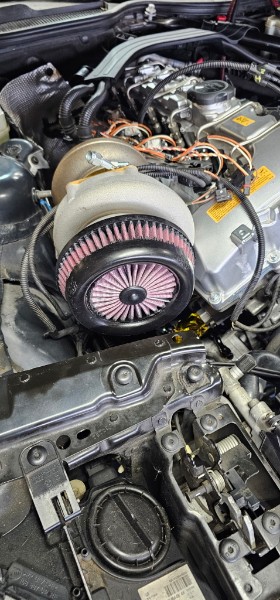

The turbo going on this build is a Precision 6070 Next Gen. For a car that left the factory with a twin-scroll turbo setup pushing around 300 horsepower in stock form, this is a different class of hardware entirely. It's a single turbo conversion — the factory twin-scroll setup comes out and a large billet-wheel unit goes in its place. New coolant and oil lines go with it, which in Steve's case was doubly important given what the old lines had been running through.

The 6070 Next Gen is sized for the 1000whp target this build is aiming at. A 67mm billet compressor wheel on a 70mm turbine moves serious air, and the Next Gen platform has become a favorite among N54 builders chasing four-digit numbers because it hits that range without laying down like a smaller turbo would. The result, bolted in with proper lines and fresh seals, is the turbo the rest of the build is being engineered around — closed-deck block, three-pump fuel system, port injection on DI, all of it exists because of what this turbo is going to ask of the engine.

Get the engine healthy, get the right turbo in it, establish a baseline that doesn't involve oil migrating into places oil shouldn't be. Most builds would have stopped at a smaller turbo and been satisfied. Steve is not stopping at a smaller turbo.

The front-mount intercooler arrived in a box. Steve's cat made it into the unboxing photo — the box was exactly the right size to be interesting to a cat, apparently. The Becker catback exhaust was already on order at the same time, so the garage was filling up with parts before the wrench turned on the first bolt. This is the natural state of a build that's moving: the parts arrive in waves and you work through them.

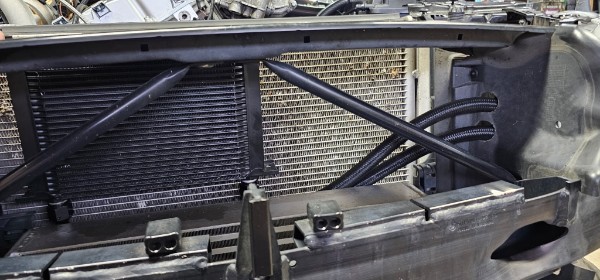

A big front-mount intercooler is the right pairing for the Precision 6070. Moving the intercooler to the front of the car gets it into cooler ambient air, away from engine heat, and gives you a larger core than you could fit near the engine. Cooler charge air means denser charge, which means more power and more consistent power across back-to-back pulls. For a car that's going to be driven hard and then driven hard again, the front-mount is the only choice.

The intercooler mounting got a double-nut setup on the fasteners — two nuts torqued against each other so vibration can't back them out over time. It's the kind of call you only make when the car is actually going to be driven at the edge of its operating envelope. A show car doesn't need it. A car that's going to be on boost regularly does. Belts and suspenders. If it's worth building, it's worth not having it rattle loose on the highway.

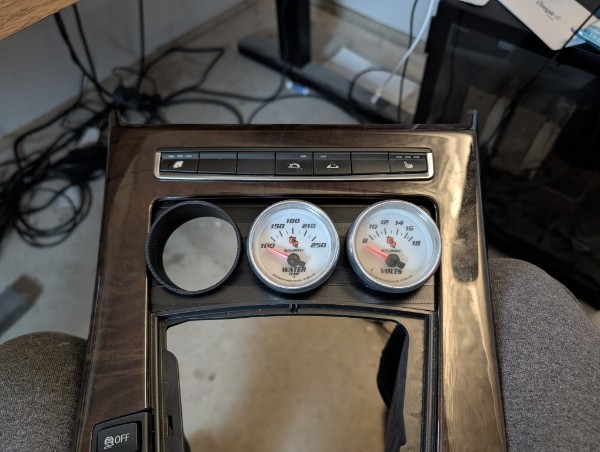

The Autometer water temp and volt gauges went into the center console around the same time. Water temp is the important one — on a modified turbocharged engine pushing toward its limits, knowing what the coolant is doing in real time is not optional. The volt gauge is belt-and-suspenders insurance on the electrical system. Both are analog Autometer units, which means they're readable at a glance and not dependent on a screen loading. On a track-day car or a car you're pushing hard, that matters.

The Becker catback exhaust rounds out the first phase of the build. The factory exhaust system is built for quiet and emissions compliance — it's not built for a single turbo setup that's moving more air than stock. A catback swap is one of the most immediate quality-of-life improvements on a turbocharged build: less backpressure means the turbo spools faster and the engine breathes more freely on the exhaust side. With the turbo, intercooler, and exhaust all addressed, the car is driving and pulling correctly. Chapter one is done.

Anyone who has done serious engine work on a modern BMW has met the torque-to-yield bolt. The spec on these is 60Nm of torque, followed by 60 degrees of angle. The bolt stretches as you apply the angle — that's intentional, it's how they achieve the clamping force they need. The problem is that once they've been stretched, they're done. They're single-use aluminum fasteners. You torque them once, you pull the engine apart for any reason, and they go in the trash because using a stretched TTY bolt a second time is gambling on whether it holds.

Steve's method: mark the bolt with a paint pen before starting the angle turn. The mark isn't there to tell you where 60 degrees is — it's there to tell you where another 60 degrees would put you. If you overshoot, if the bolt snaps, if the aluminum strips, you are now extracting a broken bolt from a BMW engine block. That's a bad day. The paint pen is a visual stop, a reminder that you are exactly one wrong turn away from a problem that takes hours to fix and costs real money to get back to where you were.

Every fastener in this engine is like this. BMW engineers the torque specifications to within a degree because they're using materials that won't forgive being wrong about it. The precision is the point. The consequence is that building this engine correctly means owning a torque wrench, a torque angle gauge, a paint pen, and enough patience to not rush any of it. Steve knows this. He builds accordingly. You do it right once, then you throw the bolt away.

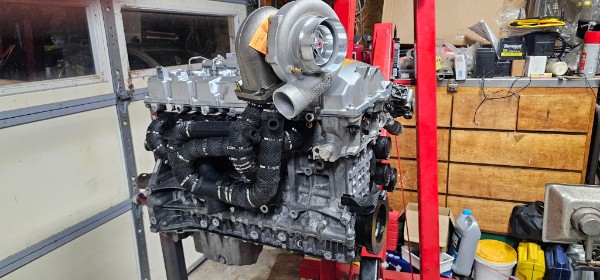

A four-digit wheel horsepower number starts with the block. The stock N54 block is open-deck — there are gaps in the cylinder walls where coolant circulates. This is standard engineering for a production engine at production power levels. When you start pushing cylinder pressure high enough to need 950cc injectors and a three-pump fuel system, the open-deck block becomes a liability. The gaps allow the deck to flex under extreme combustion pressure, which leads to blown head gaskets and, if you're unlucky, worse.

A closed-deck conversion fills in those gaps. The cylinder walls are structurally supported all the way around the bore. The deck doesn't flex. You can make the cylinder pressure numbers that come with a 1000whp tune without worrying about the block giving up. It's the foundation everything else in this build is sitting on top of.

Scott's $250 offer was a reference to the Facebook Marketplace lowballers Steve had been dealing with while selling the Raptor. The closed-deck block is worth considerably more than $250. Scott knew this. He did it anyway. With the block decision made, the next piece falling into place is the fuel system — and that's where it gets interesting. Once you're building for four-digit power you stop wondering if the fuel system is enough and start wondering which fuel system is enough.

Jim's "Wow. Unit." is the correct reaction to this fuel system. Three Walbro pumps across two stages is not a bolt-on solution — it's a full bespoke fuel delivery architecture.

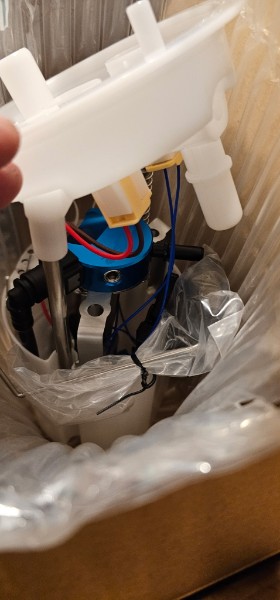

The setup: a Walbro 535 goes in the tank as the primary pump. Two Walbro 525s go in a custom surge tank that sits between the in-tank pump and the engine. The surge tank is a reservoir — the 535 keeps it filled, and the 525s pull from it to feed the engine under boost. The reason for this arrangement is surge: under hard acceleration, fuel in the tank sloshes away from the in-tank pump pickup, and for a split second the pump is sucking air instead of fuel. A surge tank solves this by keeping a captive supply of fuel right at the high-pressure pumps at all times.

The check valve detail Steve mentioned is real, specific knowledge: the Walbro 525 has internal check valves. The 535 does not. The check valves in the 525 prevent fuel from bleeding back through the pump when it's not running, which matters in a surge tank setup where you need consistent prime pressure and don't want the tank draining back through a pump that's momentarily off. The 535 goes in the main tank where that behavior matters less. Knowing the valve topology of your fuel pumps before speccing the system is the kind of thing that separates someone who's done this before from someone who's winging it.

On top of that: 950cc port injectors added to the factory direct injection. The N54 runs DI from the factory — high-pressure fuel injected directly into the combustion chamber, bypassing the intake ports entirely. DI is efficient and precise, but it has two problems at extreme power levels: first, the stock DI system can't flow enough fuel to support 1000whp; second, because fuel never touches the intake valves, carbon deposits build up on the valve stems and seats over time — a known endemic problem on DI-only engines.

Port injection solves both at once. The 950cc injectors add flow capacity that the DI system alone can't hit at this power level, and spraying fuel into the intake port means the valves get washed every combustion cycle. No carbon buildup. Two problems, one set of injectors. Steve knows what he's doing.

Jim dropped a Fast & Furious quote into the group chat as a tribute to Steve's parts list. Scott approved with a thumbs up. Steve sent the laughing emoji. Nobody disagreed with it. The parts list has earned the reference.

Jim didn't wait for the diff to blow. He called it prophylactically, before Steve even announced the swap plan. Steve confirmed 100%. Jim said good. That's the entire conversation, and it covers the subject thoroughly. The factory BMW differential is well-engineered for a road car producing factory power numbers. It is not engineered for a closed-deck turbocharged inline-six pushing over 1000 wheel horsepower through sticky tires. At some point the diff stops being a weak link and becomes the only link, and then it becomes an expensive noise on the side of the highway.

The Ford 8.8 is an 8.8-inch ring gear rear axle from Fox-body and SN-95 Mustangs — produced by Ford from 1982 through 2004 in enormous quantities. It's a proven high-power unit with a massive aftermarket behind it. Availability: there are more 8.8 axles sitting in junkyards and for sale on Marketplace than you can count. Strength: it's built to handle V8 torque in a 3,300-pound car with sticky tires — it will handle turbocharged four-cylinder numbers that would destroy a stock BMW diff without breaking a sweat. Aftermarket: every gear ratio has been offered, every limited-slip option has been built, every axle shaft upgrade has been catalogued and priced.

The swap itself isn't trivial — there's fabrication involved, halfshaft ends to adapt, geometry to sort — but it's a solved problem. The write-ups exist. The parts exist. For a 1000whp build on a deadline, "solved problem with massive aftermarket support" beats "factory part that will grenade" every single time.

At some point someone has to answer for how this started. Steve had thoughts on that.

Scott's "How so?!?" was not a serious defense. Jamie answered immediately and correctly. The chain of custody is clear: Scott sold Steve the BMW, Steve proceeded to spend a significant amount of money on the BMW, therefore Scott is responsible for all of it. This is airtight logic. David suggested leaving it bone stock as an alternative, which is technically sound advice and was dismissed in under five seconds. Jamie's counterpoint — big turbos are awesome — is also sound, and unlike David's advice, it actually reflects what anyone in this group was going to do with the car anyway. Case closed.

The BMW Z4 sDrive35i turbo build is in a known state. Hardware on the car: Precision 6070 Next Gen single turbo, big front-mount intercooler mounted and double-nutted, Becker catback, Autometer gauges in the center console. The factory twin-scroll setup is gone, the leaking old turbo is gone, the shot wastegate is gone. The foundation is in.

The second timeline is the one the group chat is watching: closed-deck block, Walbro 535 in-tank with two 525s in the custom surge tank, 950cc port injection layered on top of the factory DI, and a Ford 8.8 rear end going in where the BMW diff currently lives. The target is a little over 1000 wheel horsepower. The plan is locked. The parts are moving.

What's standing between the current state and that number being on a dyno sheet is a custom tune. Steve said it plainly: not without a custom tune, not taking any chances. You don't put 1000whp to the pavement on a map that wasn't written for your specific combination of closed-deck block, three fuel pumps, and dual injection. The tune is the gating item, and it's being treated that way. The 8.8 goes in, the tune gets dialed in, then it rips.

The person responsible for setting all of this in motion is Scott, who sold Steve the car. Scott's defense — "How so?!?" — did not survive contact with Jamie's response. The evidence is clear. The build is happening. Scott is on record as the cause. He seems fine with it.

Jamie said big turbos are awesome. He's not wrong. He's never been wrong about that.

The N54 finally fired. Not casually — with a procedure. Pull the coils, plugs, and injectors, then crank for ten seconds. Let it sit. Do it again three or four times. That's not overthinking it, that's priming the oil system before the engine actually runs. On a motor that's been sitting, possibly reassembled, with new components throughout, you want oil pressure established before combustion starts. Steve knows this. He ran the procedure.

The base map going in was MHD Stage 1 — conservative, known good, the right call for a first start on hardware that hasn't been fired yet. The goal on day one isn't power. It's confirming the engine runs, getting it through a full heat cycle, and seeing what codes come up when it does.

What came up: one code. The engine fan, which was sitting next to the car unhooked. That's not a real code — that's a deliberate diagnostic condition. Clear it, plug the fan back in, move on. The engine itself ran clean. No misfires, no boost leaks throwing codes, no fuel system alarms from the Walbro setup. Clean.

The oil cooler O-ring leak is a known BMW N54 thing — the sandwich plate O-rings harden and weep over time, and a freshly-started engine with fresh oil pressure will find the soft spots fast. Steve already ordered BMW OEM replacements. Not aftermarket. The right call on a car targeting four-digit horsepower is OEM seals where OEM seals are available. Jamie found what appeared to be the same part on Temu for $40 against $145 on eBay. Steve is not interested.

The lifter tick on cold start is typical N54 behavior — valvetrain lash before oil gets into the top end. Goes away within a minute of running. Watch it. It's not a problem yet.

Two parts incoming: an LP fuel pressure sensor so he can datalog the low-pressure side of the fuel system, and a Bluetooth Reflex adapter for MHD so he can pull logs without a laptop on the windshield. The car runs. The logging comes next. The tune comes after.
